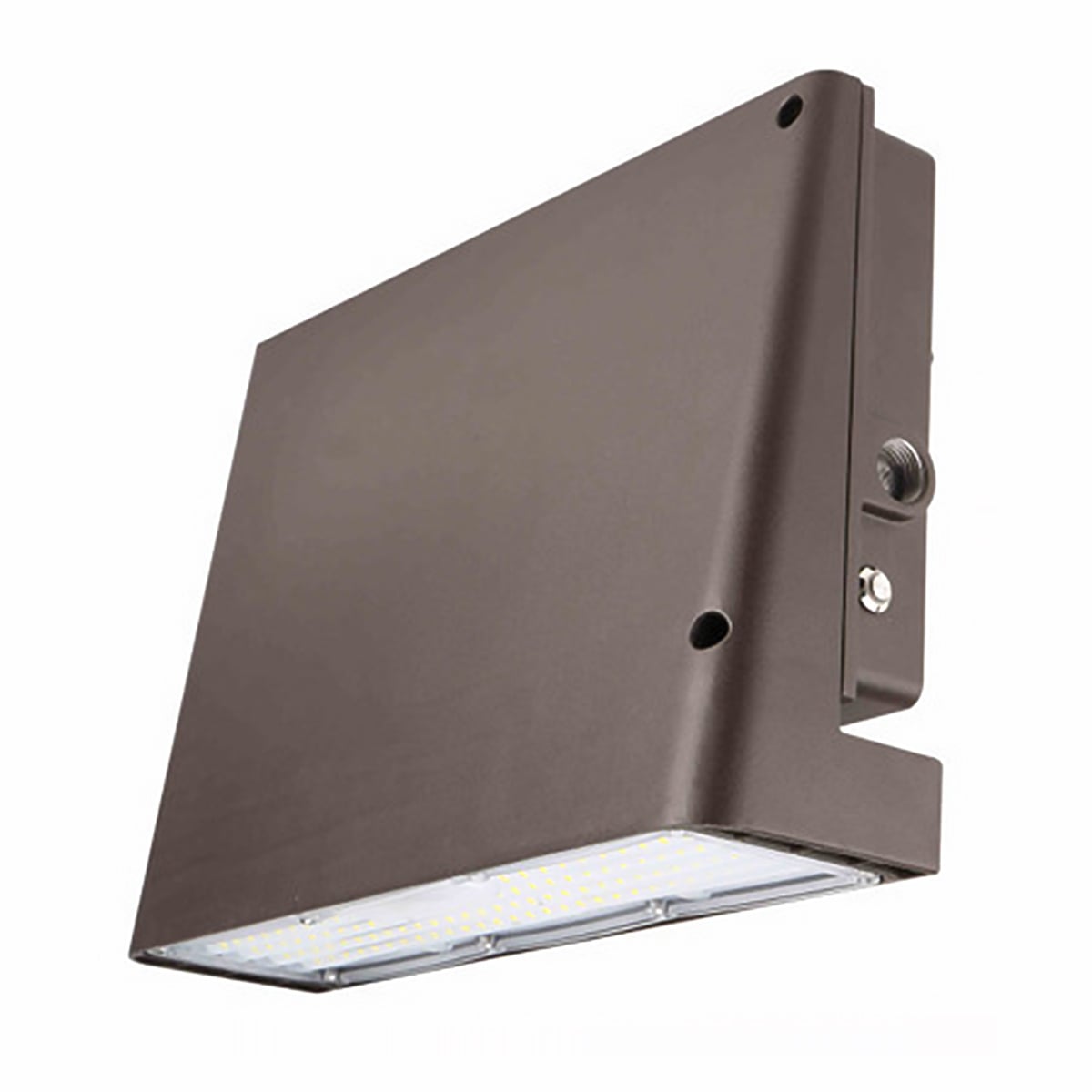

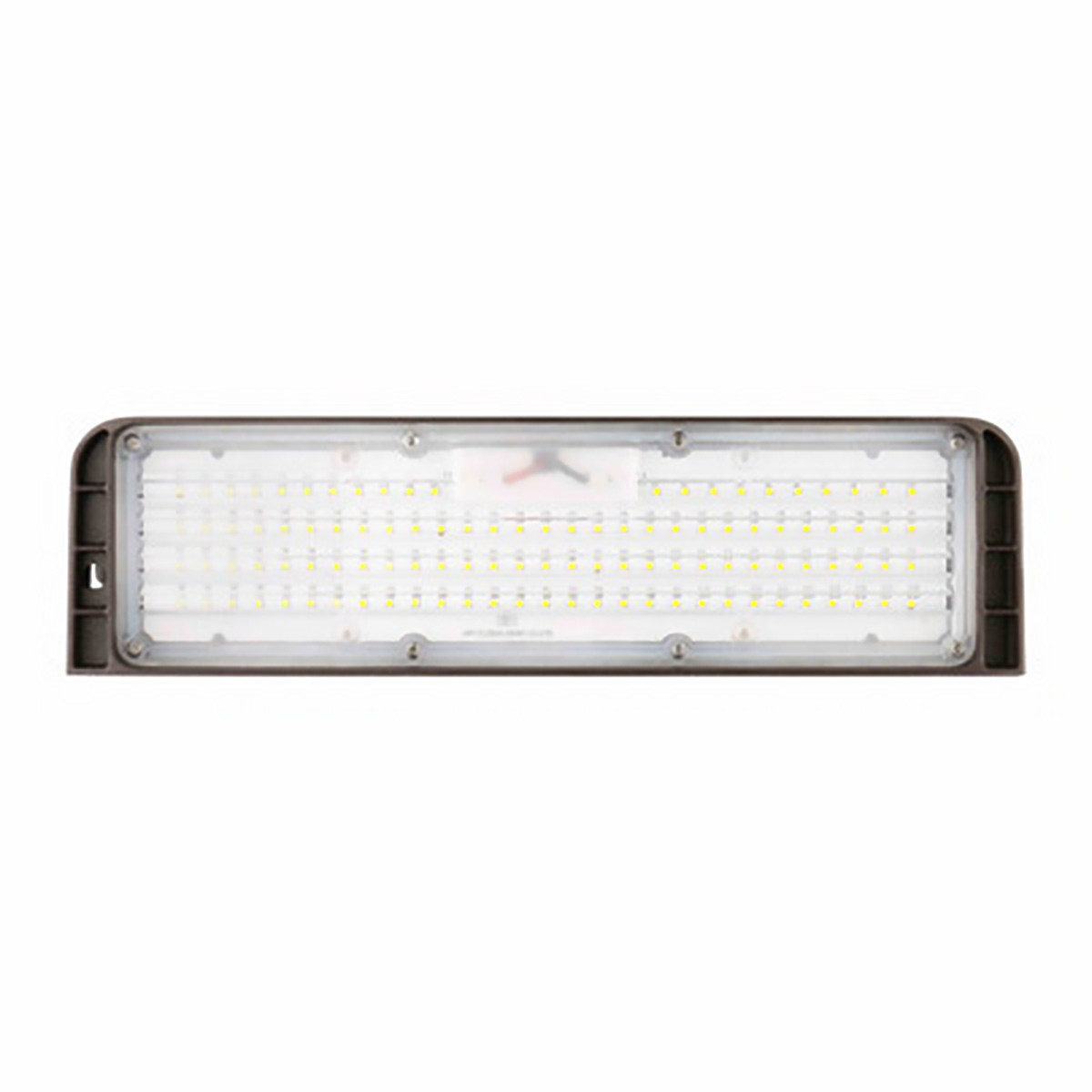

Slim Full Cut Off LED Wall Pack Fixture - Choose Your Wattage, Color Temperature, and Accessory

The 9516FC series of LED Wall Pack, available in wattages from 26W to 135W, can replace up to 400W MH. Uniform light distribution and excellent LED lumen maintenance rate, high energy efficiency, low cost, while taking into account the stylish design, ensure that the fixture has a long service life. The MCT models also have on-site dimmable output and color temperature settings, allowing the contractor to set the lumen value and CCT of the fixture at the installation site to a level that is perfectly suitable for the work site. Emergency battery and photo control are optional, which is an ideal choice to meet any wall-mounted lighting applications.

ELECTRICAL

• Utilizes advanced high-powered LED technology with multiple color temperature options and a CRI of >80
• On MCT models, the output and CCT can be tuned by a switch on the back of the fixture
• Optional photocell and emergency battery available
• Operating temperature rating of 0ºF to 104ºF (-17ºC to 40ºC)
• Driver has a power factor >90%, THD <20%
• Input voltage of 120-277VAC

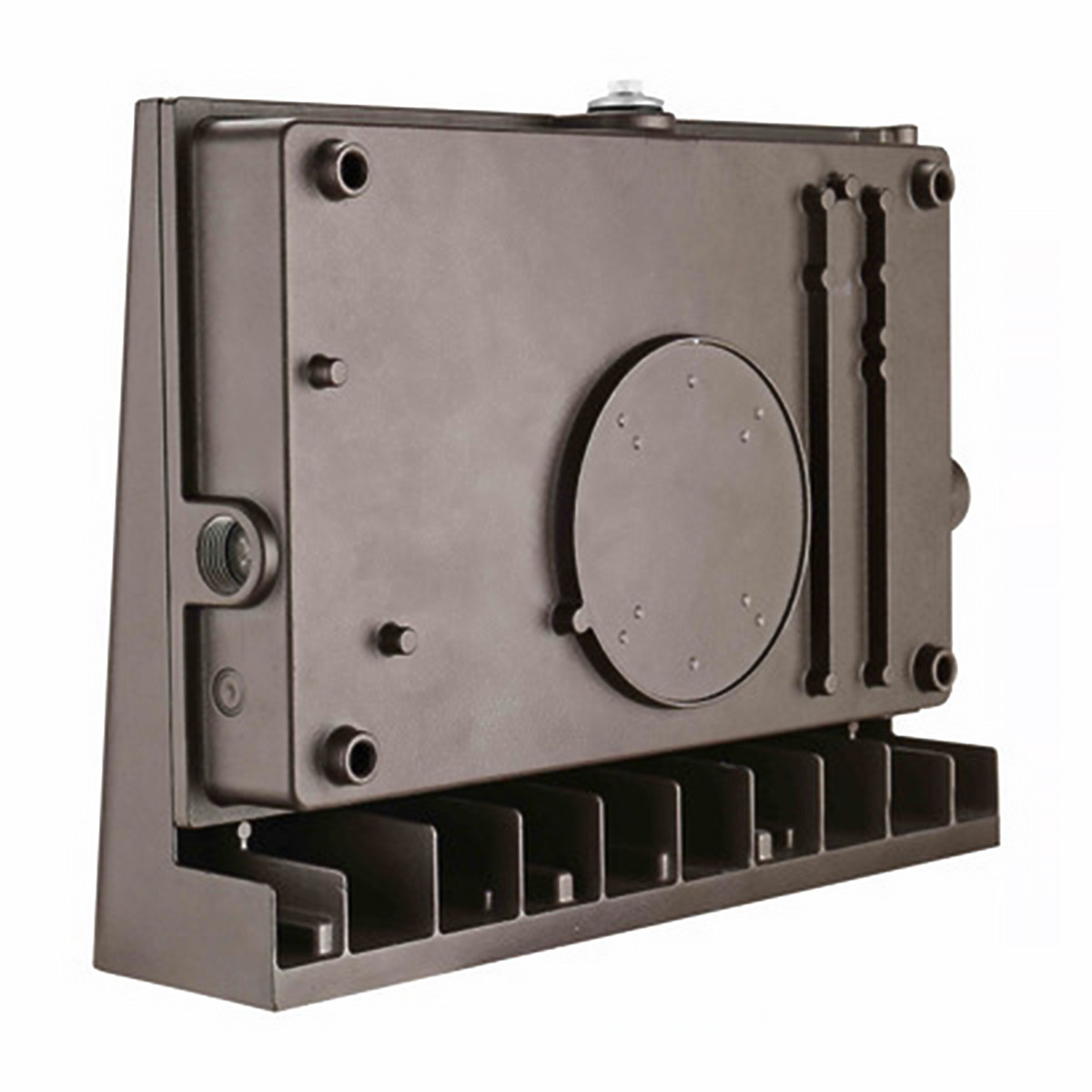

• MWP15 can be mounted directly over a standard 4 and 5 inch electrical junction box
• Three 1/2 inch conduit holes on three sides allow for surface conduit wiring
• Dimming: 1-10V compatible - requires low voltage dimmer
• UL listed for wet locations

WARRANTY

• 5-year limited system warranty standard
• Warranty does not cover product failure due to an over-voltage event (power surge), improper dimmer or control installation(as this may cause damage to the internal driver), or inconsistent amperage in the circuit. For installations where power surge may be possible, Superior recommends installing additional surge protection at the fixture or electrical distribution panel.

Order your full cutoff LED wall pack today and take advantage of great prices and fast shipping, along with huge savings on your energy bills.
