LED Plastic EdgeLit Exit Sign - White Canopy Surface Mount with Green Lettering

PLELXTEU1-G-C-W-EM -LED Edgelit Exit Sign- Surface Mount Plastic Canopy Spec Sheet



This exit sign is a value-priced, modern edge-lit design that provides constant and uniform illumination. The sharp design is ideal for high-end residential and commercial applications. This unit can be surface mounted from either the top, end, or back of the sign on surface areas, not recessed in the wall or ceiling. (Click here if you need recessed mounted signs.) UL listed for damp locations, these LED Edgelit signs come with a 5 year warranty on all electronics and housing. For units that have a battery back up, the battery is Ni-Cad rechargeable and pro-rated to last 5 years. Also available in red lettering.

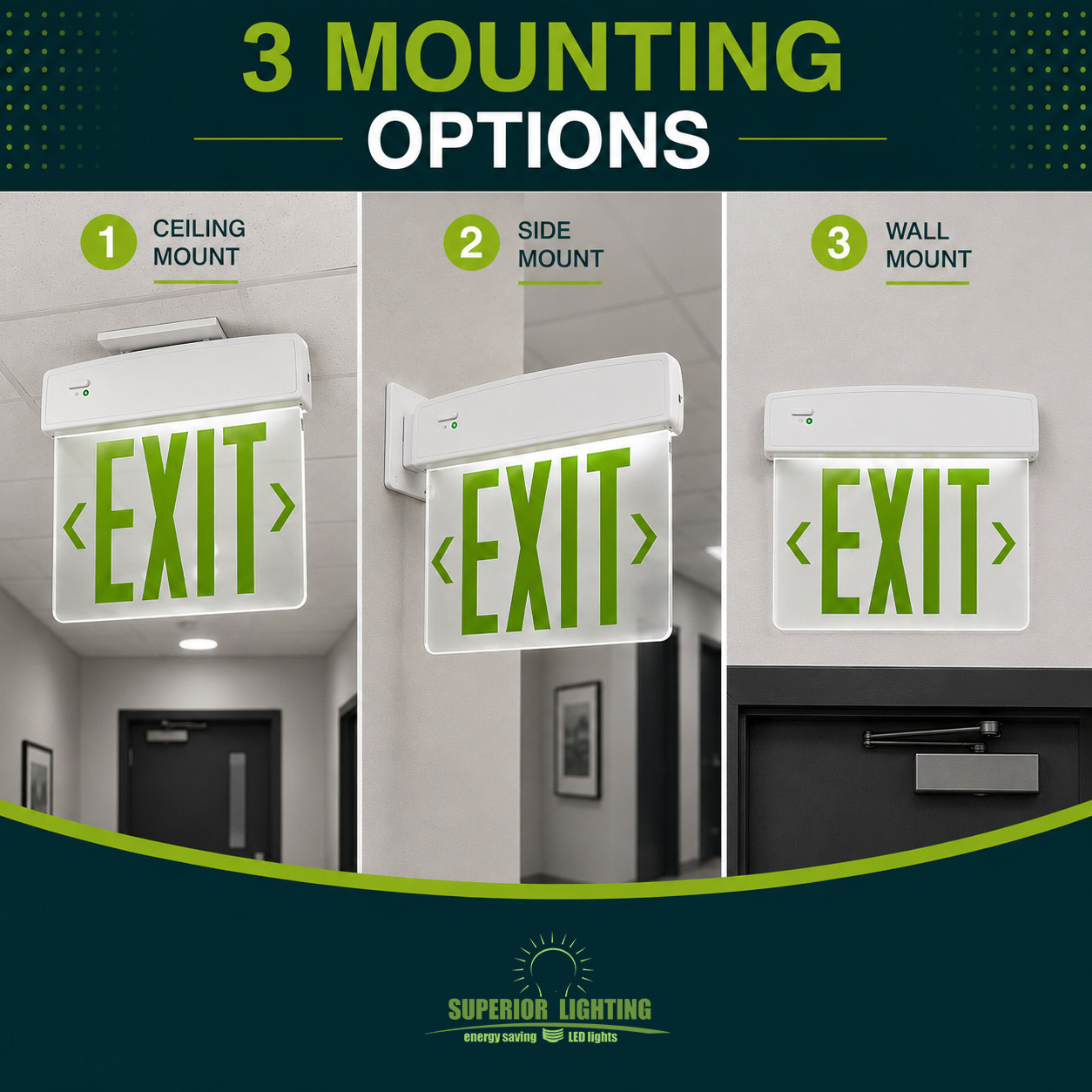

• Universal tri-mount canopy included: provides top, end, or side-mount installation
• Premium grade extruded aluminum housing
• Solid state electronics and charger board
• AC "ON" LED indicator
• Push-to-test switch
• Compact, low-profile design
• Standard AC and emergency units available
• Energy consumption of less than 3W for AC only and less than 5W for battery backup (EM) units
• Emergency backup model (EM) is completely self-contained
• Infield installable directional indicators
• 120V/277V Dual Voltage operation
• UV-stabilized ultra-clear acrylic panel
• Premium high-output ultra bright LEDs
• Ni-Cad rechargeable battery on EM units
• Double face units utilize full white or silver mylar insert
• Housing colors available: anodized aluminum, white, black
• SDT available on this model

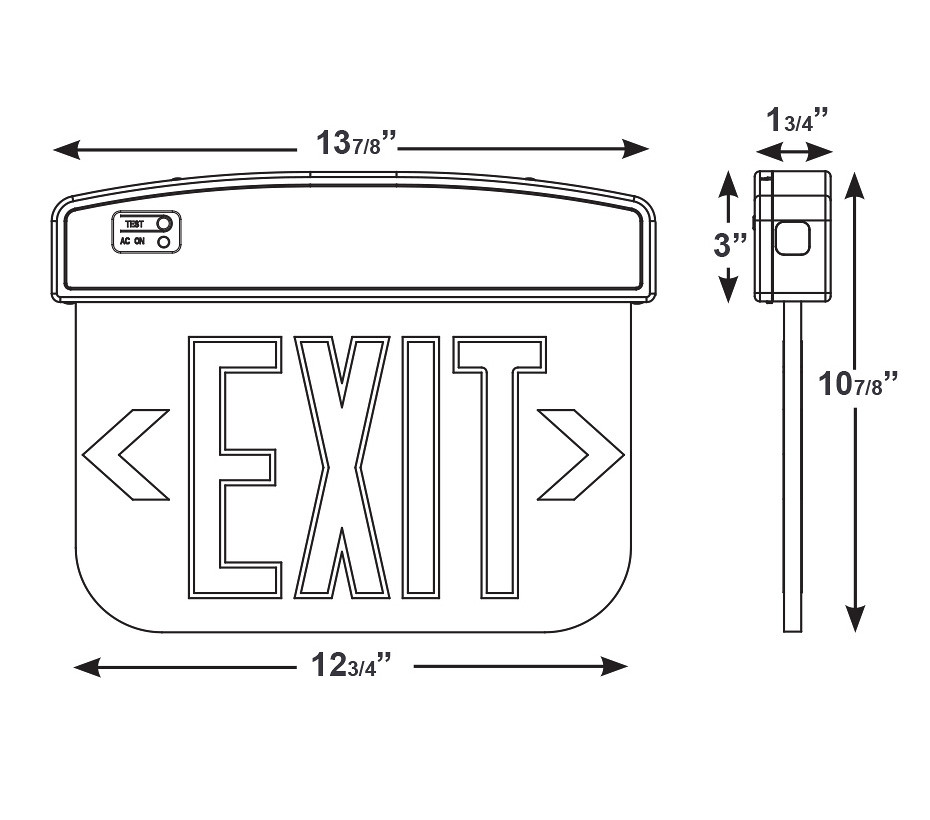

• Dimensions: 13.75 In. Width x 11 In. Height x 1.75 In. Depth
